WooCommerce

Created by Maja Bradonjic, Modified on Fri, 26 Aug 2022 at 03:54 PM by Vincent P

TABLE OF CONTENTS








1) Description


WooCommerce is a Web-based open source eCommerce platform that helps in the creation of an online store with themes, payment, shipping options & more.


  • Everything You Need to Start Selling Online


Add the WooCommerce plugin to any WordPress site and set up a new store in minutes. Get secure payments, configurable shipping options, and more, out of the box – for free.


  • Customize and Extend


From subscriptions to gym classes to luxury cars, WooCommerce is fully customizable. Add features and extend the functionality of your store with official extensions from the WooCommerce Marketplace.


  • Run Your Store From Anywhere


Manage your business on the go with the WooCommerce Mobile App. Create products, process orders, and keep an eye on key stats in real-time.







2) Setup


For a full overview of all options please consult:

How to integrate WooCommerce



Step 1: Go to  Settings→ Advanced→ Rest API.

In WordPress:



To create or manage keys for a specific WordPress user, go to WooCommerce > Settings > Advanced > REST API.

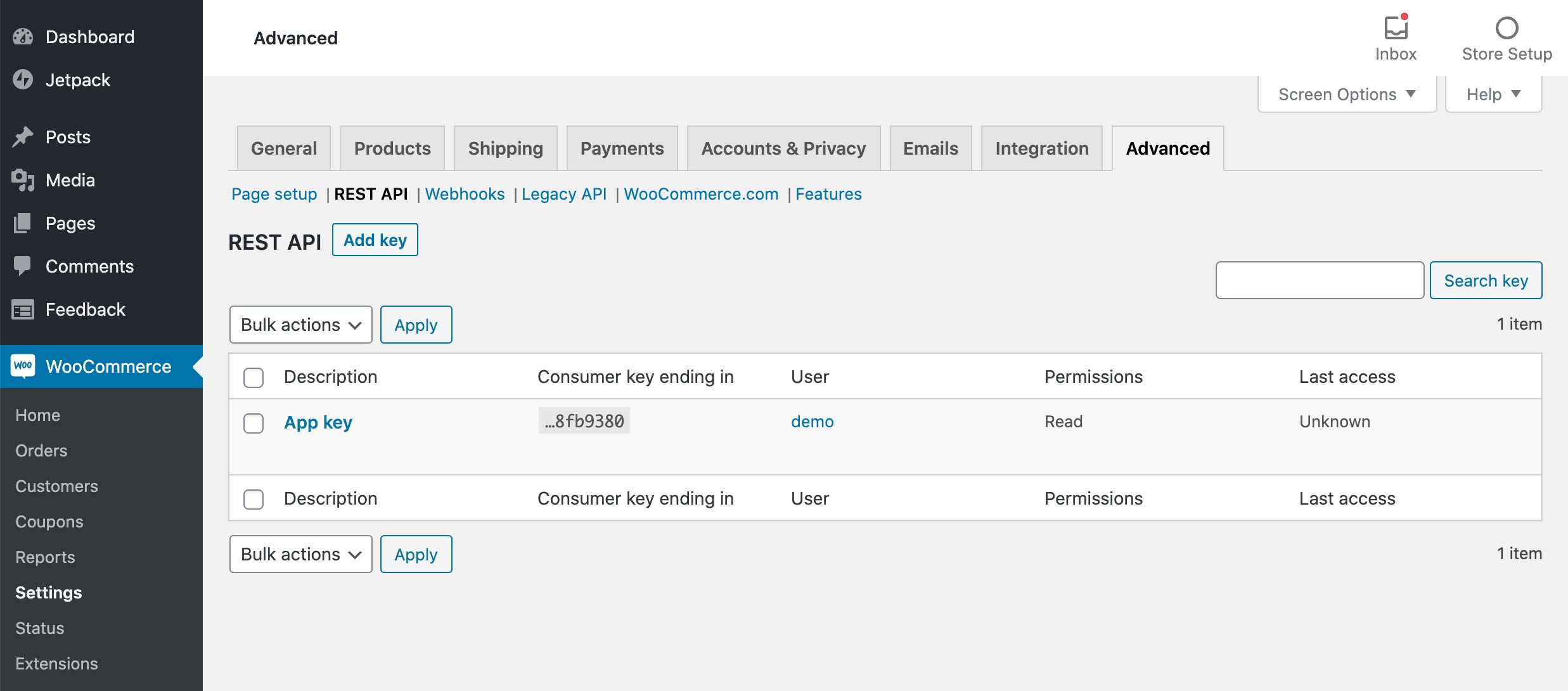

WooCommerce REST API keys settings

Choose the level of access for this REST API key, which can be Read access, Write access or Read/Write access.


(It is recommended to enable Read/Write if you want to use WooCommerce as both a Source and Target)


Then click the "Generate API Key" button and WooCommerce will generate REST API keys for the selected user.

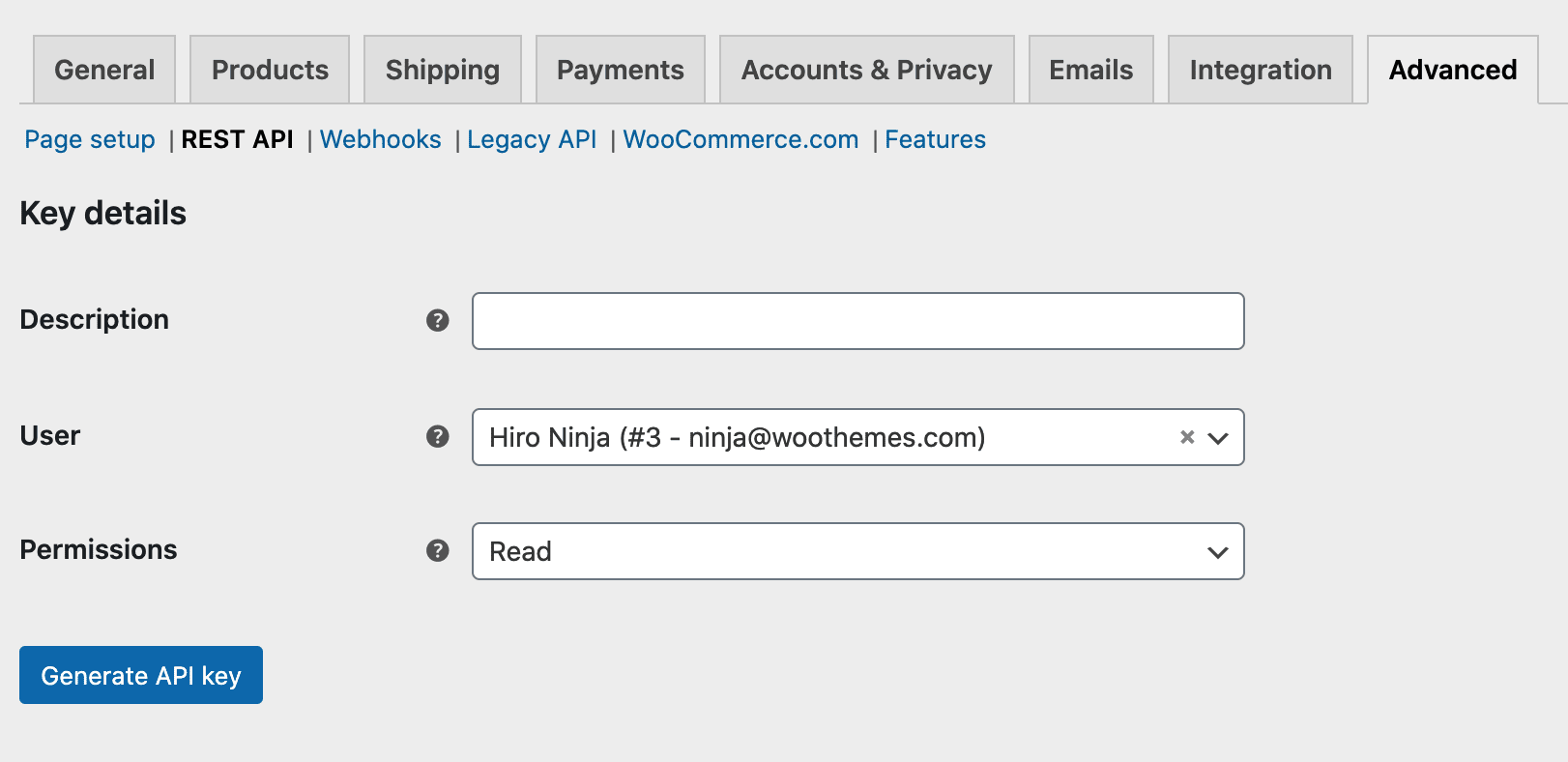

Creating a new REST API key



Step 2: Fill in the fields

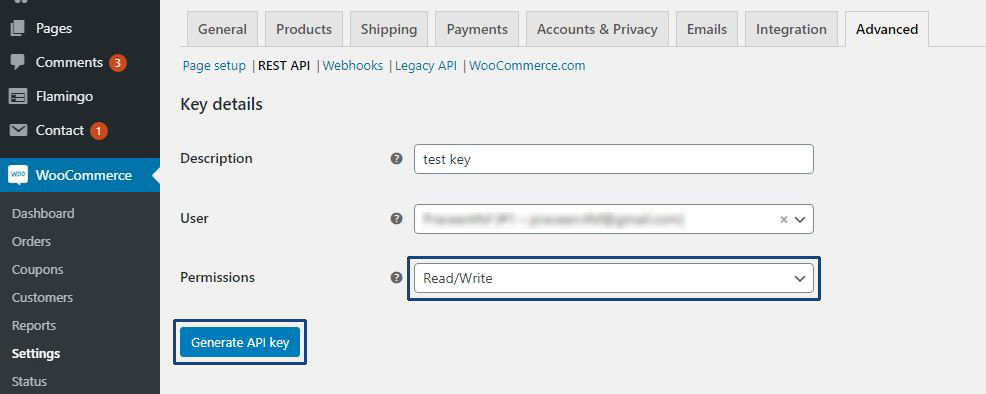

Fill the fields Description, User, and in Permissions select Read/Write. Next, click on the button Generate API key.





Now that keys have been generated, you should see two new keys. These two keys are your Consumer Key and Consumer Secret.

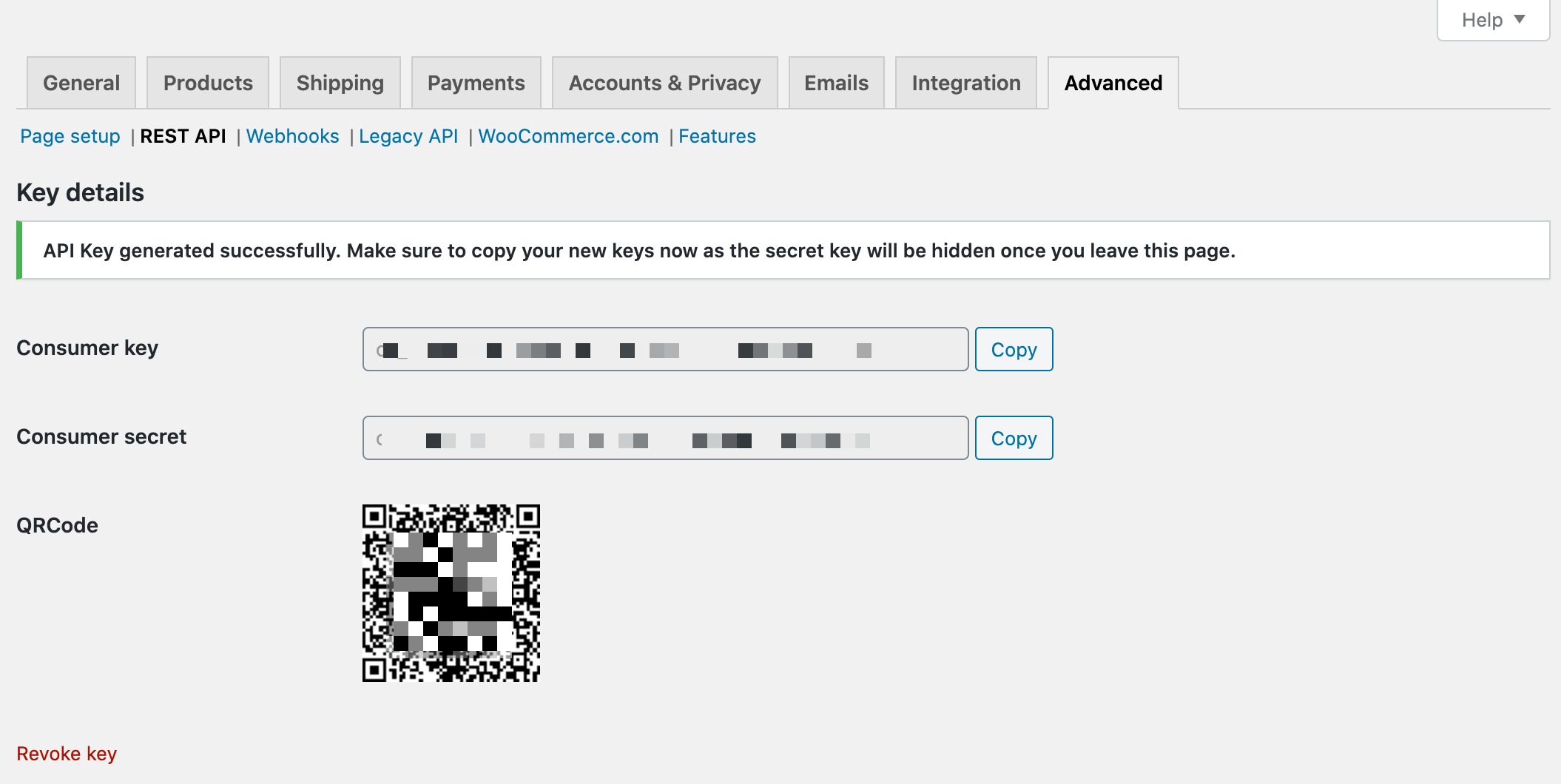

Generated REST API key




Step 3: Copy the key, and secret and insert it in SyncSpider

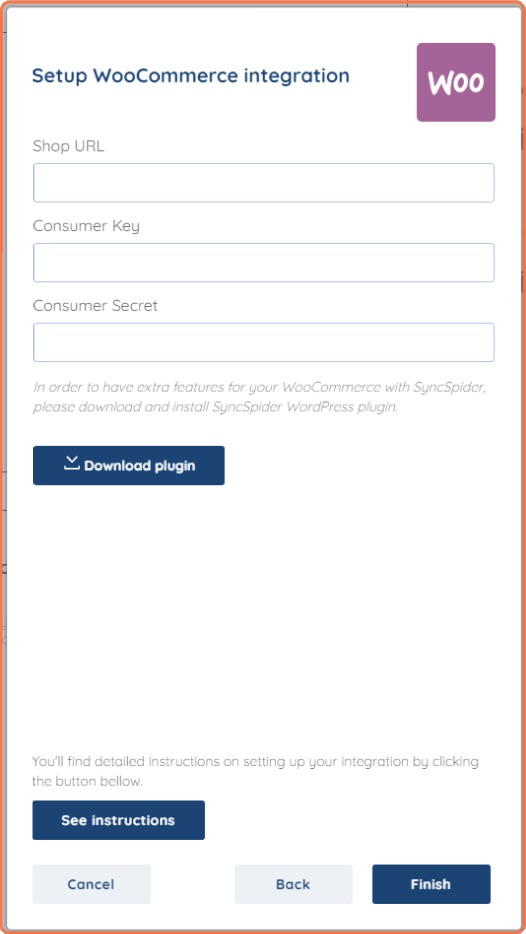

Copy the Shop URL, Key, Secret then paste it from WordPress to your SyncSpider account. Then, click finish.










3) WooCommerce as Source




3.1 Product




3.1.1 Source Configuration




Choose product unique identifier field (UID)



With this option, you can select whether you are using a Product, SKU, Name, or a Metafield as the Unique Identifier Field of your Products.


  • Product ID

If Product ID is selected as the UID it will become the main required field for your WooCommerce Product.



  • SKU

If SKU is selected as the UID it will become the main required field for your WooCommerce Product.



  • Name

If Name is selected as the UID it will become the main required field for your WooCommerce Product.







Products to Import



Created and modified products after the last task execution date is available only with the latest SyncSpider WordPress plugin installed



  • All Products



If this is selected all products will be imported always.



  • Only Products published after last task execution date



If this is selected, only products that got published after the last execution will be sent over.



  • Only Products created after last task execution date (GMT)



If this is selected, only products that got created after the last execution will be sent over.



  • Only Products modified after last execution date (GMT)



If this is selected, only products that got updated/modified after the last execution will be imported.





Sort by Date



With this option, you can sort the contacts that will be imported based on their creation date.

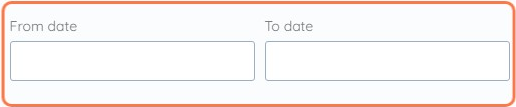

To set a date you can use the Calendar screen that pops up when a date text field is selected:




Exclude parent from Variable products, just send Variants



If this is switched on all parent products from Variable products type will be excluded from the export. Variations and Simple products will be exported.




Append attributes and categories from Variable products




If this is switched on all attributes and categories from Variable products will be included in product Variations.

Also, images and descriptions will be added from the parent product if missing in variation.





3.1.2 Filtering


WooCommerce with Product as Source allows to be filtered by the following fields and conditions:


Filter By

Condition

Product Id

Equals, in a Sequence, Not in a Sequence

Search Term

Equals

Slug

Equals

Status

Equals

Product Type

Equals

SKU

Equals

Featured

Equals

Stock Status

Equals

Product on Sale

Equals

Price

Greater Than, Less Than, Between

Published date

Greater Than, Less Than, Between

Tax Class

Equals

Shipping Class

Greater Than, Less Than, Between

Categories

Equals, In a Sequence

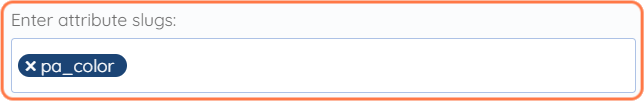

"Attribute"

Equals, In a Sequence




3.1.3 Mapping


Field

Type

ID

number

Name

text

Description

text

Short Description

text

Slug

text

Permalink

text

Categories

hierarchy

Main Image

complex

Main Image.ID

number

Main Image.URL

text

Main Image.Name

text

Main Image.Alt text

text

Images

collection

Images.ID

number

Images.URL

text

Images.Name

text

Images.Alt text

text

Images.Position

text

Tags

collection

Tags.ID

number

Tags.Name

text

Product Type

options

Status

options

Is Virtual

bool

Is Downloadable

bool

Price

number

Regular Price

number

Sale Price

number

Sale Starts At

date

Sale Ends At

date

Tax Status

options

Tax Class

options

Prices Include Tax

bool

Currency

text

SKU

text

UID

text

Parent UID

text

Manage Stock

bool

Stock Quantity

number

Backorders

options

In Stock

bool

Sold individually

bool

Weight (kg)

number

Length (cm)

number

Width (cm)

number

Height (cm)

number

Weight Unit

text

Package Unit

text

Shipping Class

options

Up-sells

collection

Up-sells.UID

text

Cross-sells

collection

Up-sells.UID

text

Product Attributes

collection

Product Attributes.Name

text

Product Attributes.Visible

bool

Product Attributes.Variation

bool

Product Attributes.Options

text

Purchase Note

text

Menu order

number

Reviews enabled

bool

Downloadable Files

collection

Downloadable Files.Name

text

Downloadable Files.URL

text

Download Limit

number

Download Expiry (days)

number

Affiliate Product URL

text

Affiliate Product Button text

text

Date Created

date

Date Modified

date

Metadata Attributes

complex

Metadata Attributes.x

text









3.2 Order





3.2.1 Source Configuration



Orders to import


Created and modified orders after last task execution date is available only with latest SyncSpider WordPress plugin installed



  • All Orders



If this is selected all Orders will be imported always.



  • Only Orders published after last task execution date



If this is selected, only Orders that got published after the last execution will be sent over.



  • Only Orders created after last task execution date (GMT)



If this is selected, only Orders that got created after the last execution will be sent over.



  • Only Orders modified after last execution date (GMT)



If this is selected, only Orders that got updated/modified after the last execution will be imported.




Sort by Date


With this option you can sort the contacts that will be imported based on their creation date.



To set a date you can use the Calendar screen that pops up when a date text field is selected:




Imported Orders Status Change



This allows the Order Status to be changed after importing the Order.



You can change the source order statuses to:

  • Pending payment

  • Failed

  • Processing

  • Completed

  • On hold

  • Canceled

  • Refunded

  • Authentication required

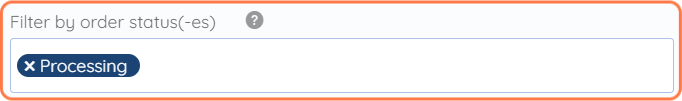

Filter by order status(-es)



Leave this field blank to pull all Orders. Select multiple filters if you are running WooCommerce v3.


WooCommerce v2 only supports one filter.




3.2.2 Filtering


Filter By

Condition

Order Id.

Equals, In a Sequence, Not in a Sequence

Search Term

Equals

Customer ID

Equals

Product ID

Equals

Billing Country

Equals

SyncSpider Order Source

Equals




3.2.3 Mapping


Field Name

Type

Internal Order Id

number

External Order Id

text

Created Via

text

Currency

options

Customer Note

text

Date Created

date

Date Created GMT

date

Date Modified

date

Date Modified GMT

date

Discount Total

number

Discount Tax

number

Shipping Total

number

Shipping Tax

number

Cart Tax

number

Total (with tax)

number

Total (without tax)

number

Total Tax

number

Prices Include Tax

bool

Order status

options

Billing Address

complex

Billing Address.E-mail Address

text

Billing Address.First Name

text

Billing Address.Last Name

text

Billing Address.Full name

text

Billing Address.Phone Number

text

Billing Address.Company

text

Billing Address.Address line 1

text

Billing Address.Address line 2

text

Billing Address.City

text

Billing Address.State

options

Billing Address.Postal code

text

Billing Address.Country

options

Shipping Address

complex

Shipping Address.First Name

text

Shipping Address.Last Name

text

Shipping Address.Full name

text

Shipping Address.Company

text

Shipping Address.Address line 1

text

Shipping Address.Address line 2

text

Shipping Address.City

text

Shipping Address.State

options

Shipping Address.Postal code

text

Shipping Address.Country

options

Payment Method

text

Payment Method Title

text

Transaction Number

text

Date Paid

date

Date Paid GMT

date

Date Completed

date

Date Completed GMT

date

Custom Fields

collection

Custom Fields.Name

text

Custom Fields.Value

text

Order Items (only products)

collection

Order Items (only products).Product SKU

text

Order Items (only products).Product Id

number

Order Items (only products).Parent Id

number

Order Items (only products).Parent SKU

text

Order Items (only products).Quantity

number

Order Items (only products).Sub-Total (without tax)

number

Order Items (only products).Sub-Total Tax

number

Order Items (only products).Sub-Total (with tax)

number

Order Items (only products).Total (with tax)

number

Order Items (only products).Total Tax

number

Order Items (only products).Price per order line (with tax)

number

Order Items (only products).Price per order line (without tax)

number

Order Items (only products).Tax Class

options

Order Items (only products).Name

text

Order Items (only products).Price

number

Order Items (only products).Price (without tax)

number

Order Items (only products).GTIN

text

Order Items (only products).Shipping Method

options

Order Items (only products).Custom Attributes

complex

Order Items (only products).Custom Attributes._original_id

text

Order Items (only products).Custom Attributes._wpcom_is_markdown

text

Order Items (only products).Custom Attributes.pageview

text

Order Items Meta Data

collection

Order Items Meta Data.Product SKU

text

Order Items Meta Data.Name

text

Order Items Meta Data.Value

text

Order Items Total Quantity

number

Order Items Count

number

Tax lines

collection

Tax lines.Tax Rate Code

text

Tax lines.Tax Rate ID

text

Tax lines.Label

text

Tax lines.Compound

bool

Tax lines.Tax Total

number

Tax lines.Shipping Tax Total

number

Shipping Fees

collection

Shipping Fees.Shipping Method

options

Shipping Fees.Shipping Method Name

text

Shipping Fees.Total (with tax)

number

Shipping Fees.Price per order line (with tax)

number

Shipping Fees.Total Tax

number

Shipping Fees.Tax Class

options

Fees

collection

Fees.Name

text

Fees.Tax Class

options

Fees.Tax Status

options

Fees.Total (with tax)

number

Fees.Price per order line (with tax)

number

Fees.Total Tax

number

Coupons

collection

Coupons.Coupon Code

text

Coupons.Discount Value

number

List of refunds

collection

List of refunds.Refund reason

text

List of refunds.Refund total

number

Order Notes

collection

Order Notes.Note

text

Order Notes.Date Created

date

Order Notes.Date Created GMT

date

Order Notes.Is Customer Note

bool

All Order Lines

collection

All Order Lines.Line Type

options

All Order Lines.Name

text

All Order Lines.Product SKU

text

All Order Lines.Quantity

number

All Order Lines.Total (with tax)

number

All Order Lines.Total Tax

number

All Order Lines.Price per order line (with tax)

number

All Order Lines.Price per order line (without tax)

number

All Order Lines.Price

number

All Order Lines.Price (without tax)

number

All Order Lines.Tax Class

options

All Order Lines.Invoice Number

text

All Order Lines.Custom Attributes

complex

All Order Lines.Custom Attributes._original_id

text

All Order Lines.Custom Attributes._wpcom_is_markdown

text

All Order Lines.Custom Attributes.pageview

text

Customer Username

text

Custom Attributes

complex

Custom Attributes.shipping_fee_recipient

text

Custom Attributes.tax_fee_recipient

text

Custom Attributes._new_order_email_sent

text

Custom Attributes._dokan_vendor_id

text

Custom Attributes.SyncSpider Order Source

text









4) WooCommerce as Target



4.1 Product



4.1.1 Target Configuration


 Choose product unique identifier field (UID)




With this option, you can select whether you are using a Product, SKU, Name, or a Metafield as the Unique Identifier Field of your Products.


  • Product ID

If Product ID is selected as the UID it will become the main required field for your WooCommerce Product.



  • SKU

If SKU is selected as the UID it will become the main required field for your WooCommerce Product.



  • Name

If Name is selected as the UID it will become the main required field for your WooCommerce Product.





Choose Batch size



Defines how many items will be processed in one batch



You can choose between the following options:

  • 1

  • 5

  • 10

  • 20

  • 50

  • 100



Create parent product automatically



This will create a Parent Product automatically based on the Variation Products provided.



Select fields that will be excluded upon creation of the parent product





Update only mapped attributes



If this is switched on only mapped data for existing products will be updated. Otherwise, all data on an existing product will be fully replaced.



Only update products



If this is switched on existing products will only be updated, non-existing products will be skipped.




Update only plugin fields


If this is switched on only mapped data for active plugins supported by SyncSpider will be updated.





Deduct product quantity with values from Source Integration



This allows you to decrease the product quantity in WooCommerce based on the value received from the source.


Use only specific attributes


Enter the attribute slug that you want to use in mapping, for example pa_color. Note that when using this setting only attributes entered will be visible.






4.1.2 Mapping


* = required when selected as UID

Field

Type

Product ID*

number

SKU*

text

Name*

text

Description

text

Short Description

text

Categories

hierarchy

Main Image

complex

Main Image.URL

text

Main Image.Name

text

Main Image.Alt text

text

Images

collection

Images.URL

text

Images.Name

text

Images.Alt text

text

Images.Position

text

Tags

collection

Tags.Name

text

Product Type

options

Status

options

Variation Status

options

Catalog Visibility

options

Is Featured Product

bool

Is Virtual

bool

Is Downloadable

bool

Regular Price

number

Sale Price

number

On Sale

bool

Sale Starts At

date

Sale Ends At

date

Tax Status

options

Tax Class

options

Parent UID

text

Manage Stock

bool

Manage Variation Stock

bool

Stock Quantity

number

In Stock

bool

Sold individually

bool

Weight (kg)

number

Length (cm)

number

Width (cm)

number

Height (cm)

number

Shipping Class

options

Up-sells

collection

Up-sells.UID

text

Cross-sells

collection

Cross-sells.UID

text

Product Attributes

collection

Product Attributes.Name

text

Product Attributes.Options

text

Product Attributes.Visible

bool

Product Attributes.Variation

bool

Purchase Note

text

Menu order

number

Reviews enabled

bool

Downloadable Files

collection

Downloadable Files.Name

text

Downloadable Files.URL

text

Download Limit

number

Download Expiry (days)

number

Affiliate Product URL

text

Affiliate Product Button text

text

Backorders

options

Metadata Attributes

complex

Metadata Attributes.x

text









4.2 Order





4.2.1 Target Configuration





New customer behavior


This specifies the behavior for orders from customers that do not exist in the destination shop.



You can choose between the following behaviors:



  • Create New

This creates a new Customer in WooCommerce



  • Create as guest order

This creates a guest order without customer account.



  • Skip Order

This will skip the entire order.



New product behavior



Specify behavior for order products that do not exist in the destination shop.



You can choose between the following behavior:



  • Create as Simple

This will create a new product as a Simple Product (no variation).



  • Save only on Order

This will only save the product in the order itself.



  • Skip Order

If the product does not exist it will skip the entire order.





How will you send prices




Specify how you will send prices for order items (option including taxes available only if SyncSpider plugin is installed)



You can choose between the following options:



  • Including Tax

  • Excluding Tax




Shipping Tax Class


Shipping tax in your WooCommerce is currently set to "Shipping tax class based on cart items".
All imported orders will automatically have this shipping tax class.





4.2.2 Mapping



* = required

Field

Type

Currency*

options

Customer*

complex

E-mail Address*

text

Billing Address*

complex

First Name*

text

Last Name*

text

Phone Number*

text

Address line 1*

text

City*

text

Postal code*

text

Country*

options

E-mail Address

text

Company

text

Address line 2

text

State

options

Order Items (only products)*

collection

Product SKU*

text

Quantity*

number

Price per order line (with tax)*

number

Tax Class*

options

Name*

text

Sub-Total (without tax)

number

Total (with tax)

number

Order status

options

External Order Id

text

Customer Note

text

Shipping Address

complex

First Name

text

Last Name

text

Phone Number

 text

Address line 1

text

City

text

Postal code

text

Country

options

E-mail Address

text

Company

text

Address line 2

text

State

options

Use billing address for shipping

bool

Payment Method

options

Payment Method Title

text

Transaction Number

 text

Custom Fields

collection

Name

text

Value

text

Order Items Meta Data

collection

Product SKU

text

Name

text

Value

text

Shipping Fees

collection

Shipping Method

options

Shipping Method Name

text

Tax Class

options

Total (with tax)

number

Fees

collection

Name

text

Total (with tax)

number

Tax Class

options

Tax Status

options

Coupons

collection

Coupon Code

text

Discount Value

number

Order Notes

collection

Note

text

Is Customer Note

bool

Set As Paid

bool









4.3 Order Status





4.3.1 Mapping


Field

Type

Internal Order Id*

number

Order status*

options

Set As Paid

bool

Refund reason

text

Refund total

number

Trigger API Refund

bool

Custom Fields

collection

Custom Fields.Name

text

Custom Fields.Value

text

Order Notes

collection

Order Notes.Note

text

Order Notes.Is Customer Note

bool

Custom Attributes

complex

Custom Attributes.x

text






5) Frequently used Workflows

Below you will find a list of Popular Workflows for Shopify.

All the mentioned Workflows offer Templates to simplify the Mapping process.



Shopify Products -> WooCommerce Products



WooCommerce Products -> Shopify Products



Shopware product -> WooCommerce product


ITscope to WooCommerce Products


WooCommerce order - Shipping.NET Label Center Add Shipment


WooCommerce order -> Odoo Saleorder





For more information on how to use a template please consult Mapping by Templates.








6) Related Content



How to use Variations in WooCommerce



Send Product Data from WooCommerce to Ebay



Map Product Variations from WooCommerce to Dokan



Dokan to WooCommerce Example



WooCommerce to Dokan Example


How to add Products to WooCommerce








We hope that this covers everything. If you have any further questions or need additional clarification, please reach out to us via [email protected] or our Chat Widget!



Was this article helpful?

That’s Great!

Thank you for your feedback

Sorry! We couldn't be helpful

Thank you for your feedback

Let us know how can we improve this article!

Select atleast one of the reasons

Feedback sent

We appreciate your effort and will try to fix the article
