How to Integrate Magento 1

Created by Maja Bradonjic, Modified on Mon, 6 Feb, 2023 at 4:18 PM by Ivana B

Description
Entities
Steps

Description

Magento is an ecommerce platform built on open source technology which provides online merchants with a flexible shopping cart system, as well as control over the look, content and functionality of their online store. Magento offers powerful marketing, search engine optimization, and catalog-management tools.

Entities

Source	Target
Category	Category
Customer	Customer
Order	Order
Product	Product
	Order Update
	Product Update

Steps

Step 1.

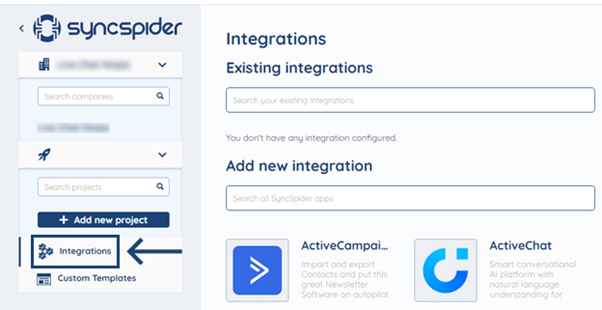

Either while Creating a Task or in the Integrations menu.

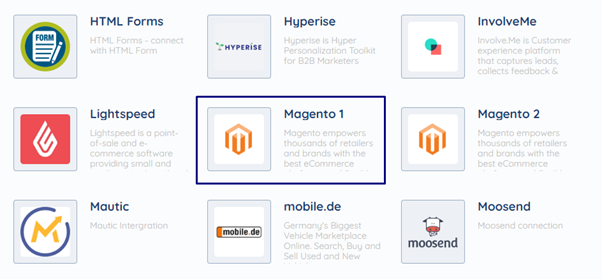

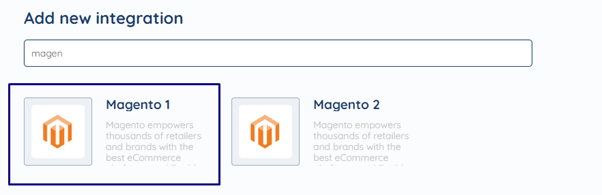

Enter the name of the integration in the search bar. Select Magento 1 Integration

Step 2.

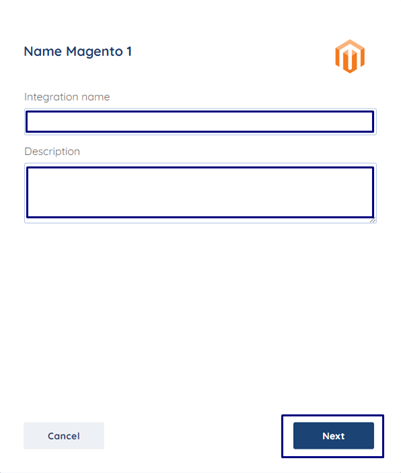

Enter the Name of the Integration.

You can optionally also enter a description. Choosing the Name for Magento 1 integration

Step 3.

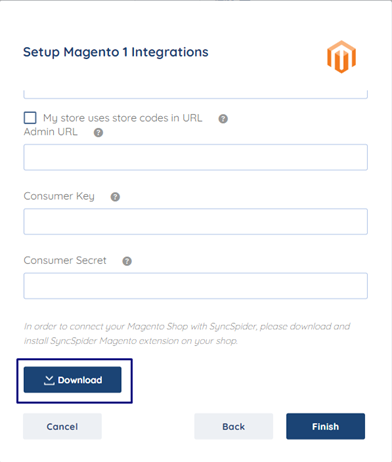

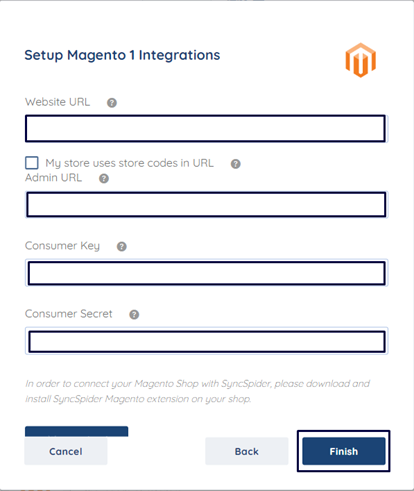

You will be prompted for the Website URL, Admin URL, Consumer Key and Consumer Secret.

Step 4.

Click on download for magento 1 extension zip file and unpack it locally and copy app directory to your Magento root. In Magento admin go to System -> Cache Management and click on button "Flush Magento Cache". Verify installation of SyncSpider extension in Magento configuration page,

STEP 5.

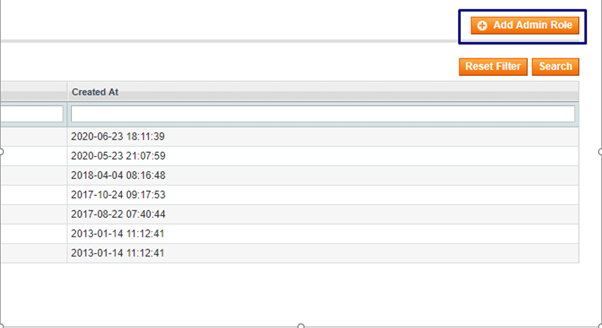

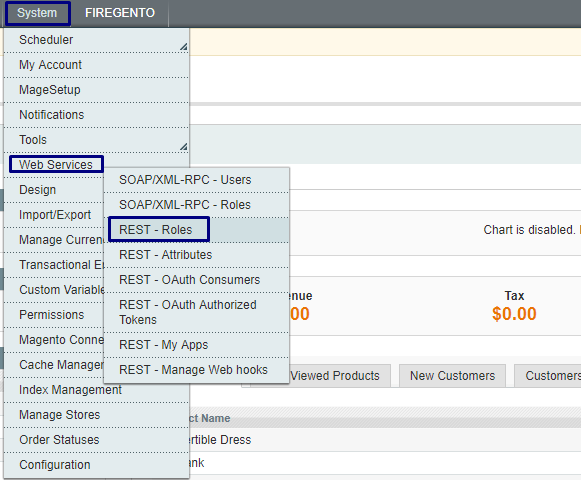

Now you have to create Admin role for that go to magento admin panel and click on system->Web Services -> REST-Roles and click on “Add Admin role”.

STEP 6.

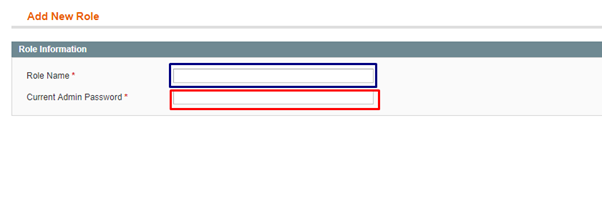

Enter Role name and Admin Password (Through which you logged in to Control panel) and click on Save Role.

Adding the new role, Role name and Admin password

STEP 7.

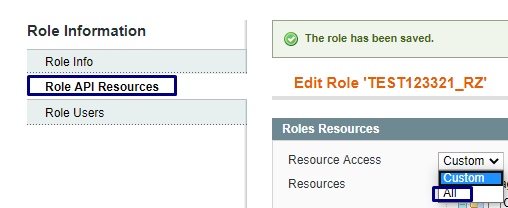

Now Click on Role API Resources and set resource access to All & Click on Button Save Role using admin password

STEP 8.

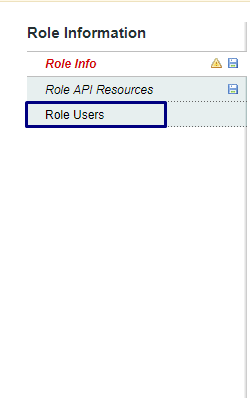

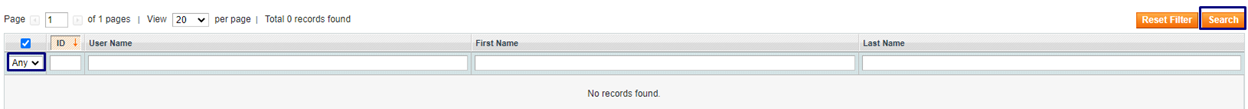

Click On Role User and Change search value to “any” and click on button “Search” & Select a user you want to assign this role to and click “Save Role” button again.

STEP 9.

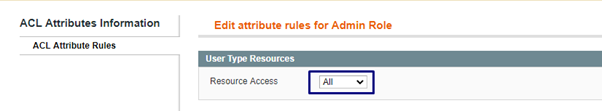

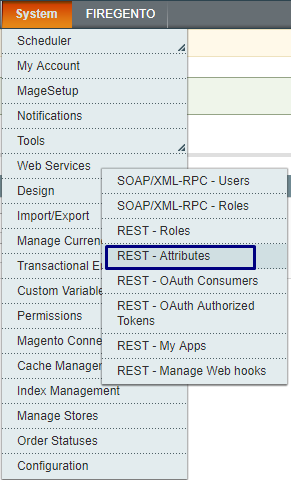

Go to System -> Web Services -> REST – Attributes & Select admin role, In the resource Access option select “all” and click the save button.

Selecting REST-Attributes inside Magento 1

NOTE: Check after installation whether SyncSpider attributes are included in admin role.

STEP 10.

Go to System -> Web Services -> REST - OAuth Consumers & enter any name for integration and enter your current admin password, Copy Key and Secret & Click on Save

Generating consumer credentials, Key and Secret

STEP 11.

In final Step enter Website URL of Magento shop, Magento Admin Control Panel URL, key & Secret obtain from Step 10 and click on Finish. Magento Authorization Pop UP page will appear, Click on Authorize and the integration is successfull.
